系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing

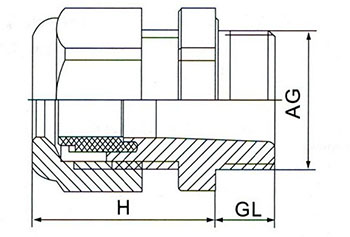

Series	Thread		GL	H		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag

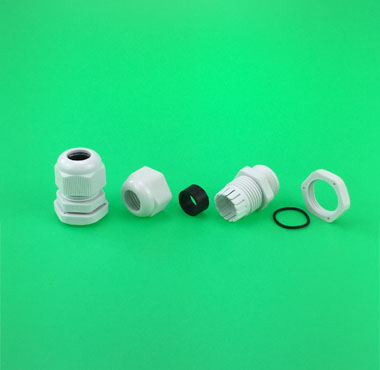

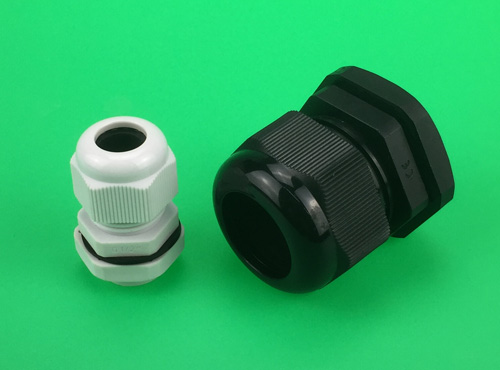

塑料电缆接头G系列 plastic cable gland G series	G1/4	3-6.5	8	22	15/16	13.1	13.1-13.4	G1408060	G1408061	100
	G1/4	2-5	8	22	15/16	13.1	13.1-13.4	G1408050	G1408051	100
	G3/8	4-8	15	26	19	16.6	16.6-16.9	G3815080	G3815081	100
	G3/8	2-6	15	26	19	16.6	16.6-16.9	G3815060	G3815061	100
	G1/2	6-12	13	30	24	20.9	20.9-21.2	G1213120	G1213121	100
	G1/2	5-9	13	30	24	20.9	20.9-21.2	G1213090	G1213091	100
	G1/2	10-14	13	30	27	20.9	20.9-20.2	G1213140	G1213141	100
	G1/2	7-12	13	30	27	20.9	20.9-20.2	G1213130	G1213131	100
	G3/4	13-18	15	35	33	26.4	26.4-26.7	G3415180	G3415181	100
	G3/4	9-16	15	35	33	26.4	26.4-26.7	G3415160	G3415161	100
	G1	18-25	16	40	41	33.2	33.2-33.5	G1016250	G1016251	50
	G1	13-20	16	40	41	33.2	33.2-33.5	G1016200	G1016201	50
	G1 1/4	18-25	18	40	42/46	41.9	41.9-42.2	G1518250	G1518251	50
	G1 1/4	13-20	18	40	42/46	41.9	41.9-42.2	G1518200	G1518201	50
	G1 1/2	22-32	15	48	52/53	47.8	47.8-48.1	G1315320	G1315321	20
	G1 1/2	20-26	15	48	52/53	47.8	47.8-48.1	G1315260	G1315261	20
	G2	37-44	15	50	64	59.6	59.6-59.9	G2015440	G2015441	20
	G2	29-35	15	50	64	59.6	59.6-59.9	G2015350	G2015351	20
