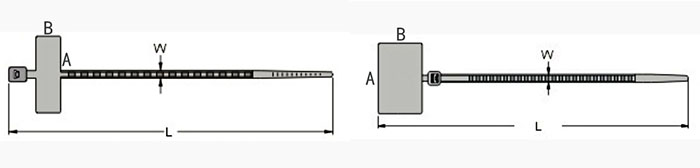

| 型号 | L | W | A | B |
最大束线径(mm) |
承受力(kgs) |
|
Model |
(mm) | (mm) | (mm) | (mm) | Max. Bundle Dia.(mm) | Tensile capacity(kgs) |
| 3×100内标(marker in inside) | 99 | 2.5 | 23.9 | 9.8 | 18 | 17 |
| 3×100外标(marker in outside) | 110 | 2.5 | 12.8 | 19.7 | 21 | 18 |
| 4×150外标(marker in outside) | 162 | 3.2 | 24.8 | 14.8 | 33 | 30 |
| 4×200外标(marker in outside) | 210 | 3.2 | 24.4 | 14.7 | 46 | 45 |
| 5×250外标飞机孔(marker in outside) | 248 | 5 | 64 | 58 | 45 | 50 |
