系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号	包装 Packing

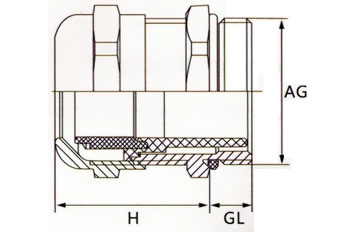

Series	Thread		GL	H		AG	Panel Mounting Hole	Order NO.	只/包
		mm	mm	mm	mm	mm	mm		Pcs/Bag

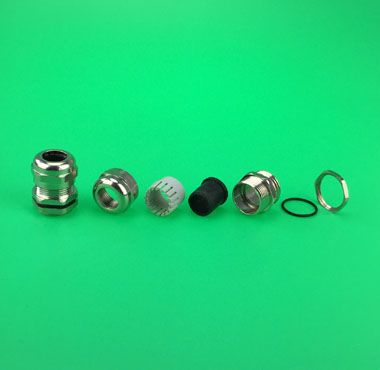

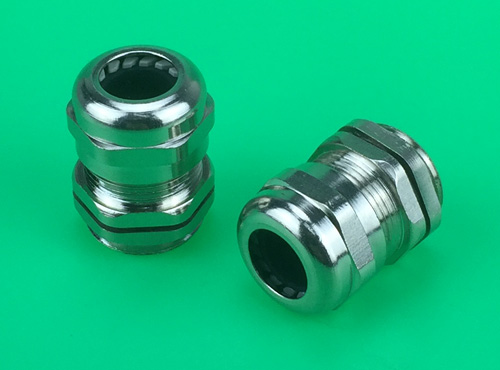

金属电缆接头NPT系列 metal cable gland NPT series	NPT1/4	3-6.5	8	18	14/15	13.7	13.7-14	T.N140806	100
	NPT1/4	2-5	8	18	14/15	13.7	13.7-14	T.N140805	100
	NPT1/4	4-8	8	20	17	13.7	13.7-14	T.N140808	50
	NPT1/4	2-6	8	20	17	13.7	13.7-14	T.N140807	50
	NPT3/8	4-8	15	20	17/18	17	17-17.3	T.N381508	50
	NPT3/8	2-6	15	20	17/18	17	17-17.3	T.N381506	50
	NPT3/8	5-10	15	21	20	17	17-17.3	T.N381510	50
	NPT3/8	3-7	15	21	20	17	17-17.3	T.N381507	50
	NPT1/2	6-12	13	22	22	21.2	21.2-21.5	T.N121312	50
	NPT1/2	5-9	13	22	22	21.2	21.2-21.5	T.N121309	50
	NPT1/2	10-14	13	23	24	21.2	21.2-21.5	T.N121314	50
	NPT1/2	7-12	13	23	24	21.2	21.2-21.5	T.N121313	50
	NPT3/4	13-18	15	25	30	26.2	26.2-26.5	T.N341518	25
	NPT3/4	9-16	15	25	30	26.2	26.2-26.5	T.N341516	25
	NPT1	18-25	16	30	40	33.3	33.3-33.6	T.N101625	10
	NPT1	13-20	16	30	40	33.3	33.3-33.6	T.N101620	10
	NPT1 1/4	18-25	18	30	40/44	42	42-42.3	T.N151825	10
	NPT1 1/4	13-20	18	30	40/44	42	42-42.3	T.N151820	10
	NPT1 1/4	22-32	18	35	50	42	42-42.3	T.N151832	5
	NPT1 1/4	20-26	18	35	50	42	42-42.3	T.N151826	5
	NPT1 1/2	22-32	18	35	50	48	48-48.3	T.N131832	5
	NPT1 1/2	20-26	18	35	50	48	48-48.3	T.N131826	5
	NPT1 1/2	32-38	18	38	57	48	48-48.3	T.N131838	5
	NPT1 1/2	25-31	18	38	57	48	48-48.3	T.N131831	5
	NPT2	37-44	18	40	64	60	60-60.3	T.N201844	4
	NPT2	29-35	18	40	64	60	60-60.3	T.N201835	4
