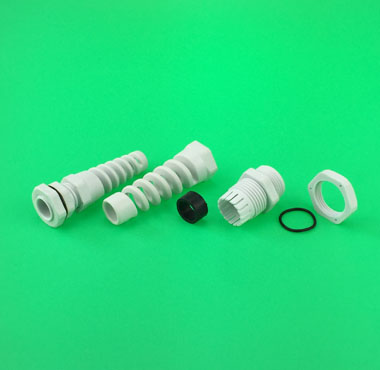

| 名 称: | 塑料防折弯接头PG系列 |
| 材 料: | 尼龙 PA6 |
| 密 封: | 丁腈橡胶 |
| 防护等级: | IP68(旋紧部位,并使用密封件） |
| 环境温度: | 静态:-40℃至100℃,短时至120℃;动态:-20℃至80℃,短时至100℃ |

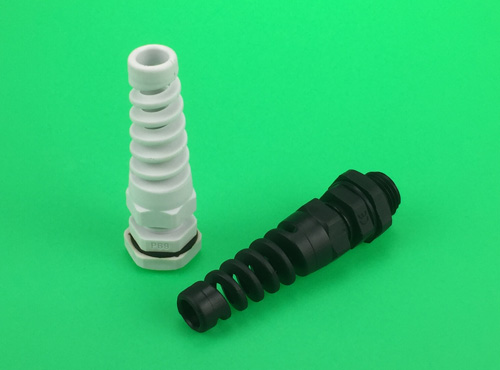

| 产品颜色: | 灰色RAL7035;黑色RAL9005 其他颜色请询问. |

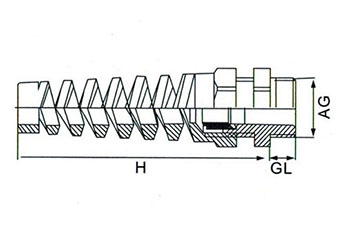

| 系列 | 规格 | 电缆范围 | 螺纹长度 | 本体高度 | 扳手直径 | 螺纹外径 | 开孔尺寸 | 订货号 Order NO. | 包装 Packing | |
| Series | Thread |
|
GL | H |
|
AG | Panel Mounting Hole | 灰色 | 黑色 | 只/包 |
| mm | mm | mm | mm | mm | mm | Grey | Black | Pcs/Bag | ||
|
塑料防折弯接头PG系列 plastic prevent bend connector PG series |
PG7 | 3-6.5 | 8 | 55 | 15/16 | 12.5 | 12.5-12.8 | P0708060F | P0708061F | 100 |
| PG7 | 2-5 | 8 | 55 | 15/16 | 12.5 | 12.5-12.8 | P0708050F | P0708051F | 100 | |
| PG9 | 4-8 | 8 | 70 | 19 | 15.2 | 15.2-15.5 | P0908080F | P0908081F | 100 | |
| PG9 | 2-6 | 8 | 70 | 19 | 15.2 | 15.2-15.5 | P0908060F | P0908061F | 100 | |
| PG11 | 5-10 | 8 | 78 | 22 | 18.6 | 18.6-18.9 | P1108100F | P1108101F | 50 | |
| PG11 | 3-7 | 8 | 78 | 22 | 18.6 | 18.6-18.9 | P1108070F | P1108071F | 50 | |
| PG13.5 | 6-12 | 9 | 90 | 24 | 20.4 | 20.4-20.7 | P1309120F | P1309121F | 50 | |
| PG13.5 | 5-9 | 9 | 90 | 24 | 20.4 | 20.4-20.7 | P1309090F | P1309091F | 50 | |
| PG16 | 10-14 | 10 | 100 | 27 | 22.5 | 22.5-22.8 | P1610140F | P1610141F | 20 | |
| PG16 | 7-12 | 10 | 100 | 27 | 22.5 | 22.5-22.8 | P1610120F | P1610121F | 20 | |
| PG21 | 13-18 | 10 | 112 | 33 | 28.3 | 28.3-28.6 | P2110180F | P2110181F | 20 | |
| PG21 | 9-16 | 10 | 112 | 33 | 28.3 | 28.3-28.6 | P2110160F | P2110161F | 20 | |
