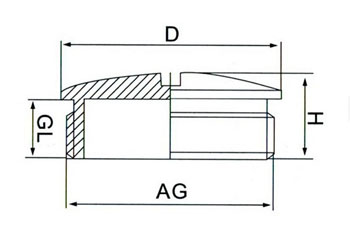

系列 规格 螺纹长度 本体高度 平面直径 螺纹外径 开孔尺寸 订货号  包装 Packing
Series Thread GL H D AG Panel Mounting Hole Order NO. 只/包
    mm mm mm mm mm   Pcs/Bag

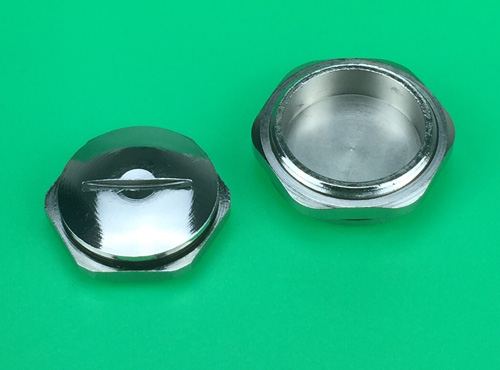

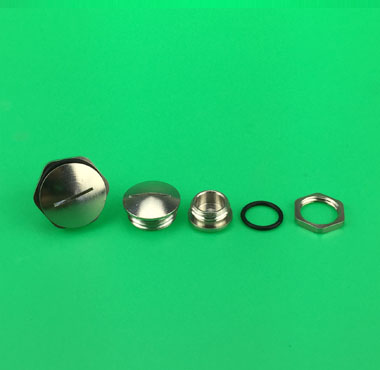

金属圆形闷盖G系列
metal round screw plug G series
G1/4 7 10 16 13.157 13.2-13.5 T.G141TA 100
G3/8 8 11 20 16.662 16.7-17 T.G381TA 100
G1/2 8 11 24 20.995 21-21.3 T.G121TA 50
G3/4 8 12 30 26.441 26.5-26.8 T.G341TA 25
G1 8 12 36 33.249 33.3-33.6 T.G101TA 20
G1 1/4 8 12 45 41.910 42-42.3 T.G151TA 10
G1 1/2 10 13 52 47.803 47.8-48.1 T.G131TA 10
G2 12 18 65 59.614 59.7-60 T.G201TA 10
G2 1/2 15 22 80 75.184 75.2-76 T.G231TA 10
G3 18 26 95 87.884 87.9-88.5 T.G301TA 10
G3 1/2 20 28 110 100.330 100.5-101 T.G331TA 10
G4 20 28.5 130 113.030 113-114 T.G401TA 10
