English 中文

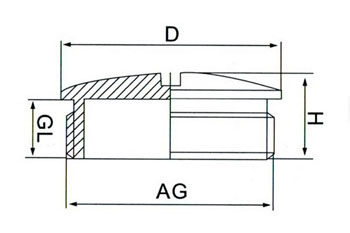

系列 规格 螺纹长度 本体高度 平面直径 螺纹外径 开孔尺寸 订货号  包装 Packing
Series Thread GL H D AG Panel Mounting Hole Order NO. 只/包
    mm mm mm mm mm   Pcs/Bag

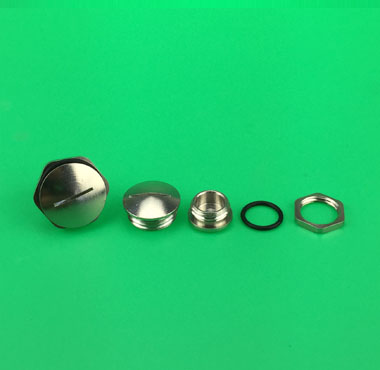

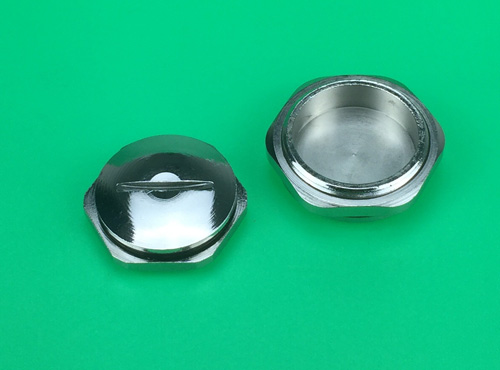

金属圆形闷盖NPT系列
metal round screw plug NPT series
NPT1/4 8 11 16 13.616 13.7-14 T.N141TA 100
NPT3/8 8 11 20 17.055 17-17.3 T.N381TA 100
NPT1/2 10 13 24 21.224 21.2-21.5 T.N121TA 50
NPT3/4 11 15 30 26.569 26.5-26.8 T.N341TA 25
NPT1 14 18 36 33.228 33.3-33.6 T.N101TA 20
NPT1 1/4 14 18 45 41.985 42-42.3 T.N151TA 10
NPT1 1/2 15 20 52 48.054 48-48.3 T.N131TA 10
NPT2 15 21 65 60.092 60-60.3 T.N201TA 10
NPT2 1/2 20 27 79 72.699 72.7-73 T.N231TA 10
NPT3 20 28 96 88.608 88.6-88.9 T.N301TA 10
