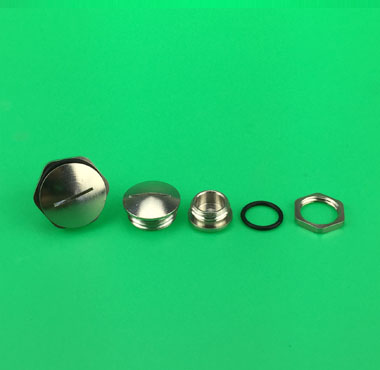

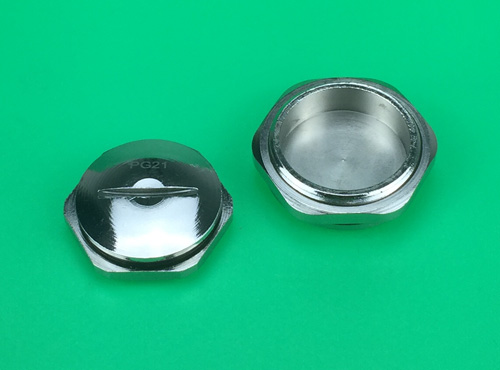

| Name: | metal round screw plug PG series |
| Material: | Nickel plated brass |
| Seal: | NBR |
| Protection Grade: | IP68(with sealing ) |
| Environment Temperature: | -40℃ to +100℃ |
| Note: | other seal material please inquire. |
| 系列 | 规格 | 螺纹长度 | 本体高度 | 平面直径 | 螺纹外径 | 开孔尺寸 | 订货号 | 包装 Packing |

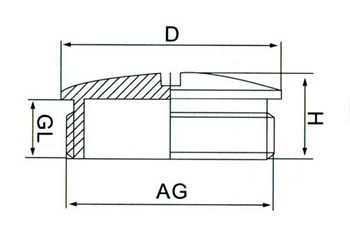

| Series | Thread | GL | H | D | AG | Panel Mounting Hole | Order NO. | 只/包 |
| mm | mm | mm | mm | mm | Pcs/Bag | |||
| 金属圆形闷盖PG系列 metal round screw plug PG series |
PG7 | 5 | 8 | 14 | 12.5 | 12.5-12.8 | T.P071TA | 100 |
| PG9 | 6 | 9 | 17 | 15.2 | 15.2-15.5 | T.P091TA | 100 | |
| PG11 | 6 | 9 | 20 | 18.6 | 18.6-18.9 | T.P111TA | 50 | |
| PG13.5 | 6.5 | 9.5 | 22 | 20.4 | 20.4-20.7 | T.P131TA | 50 | |
| PG16 | 6.5 | 9.5 | 24 | 22.5 | 22.5-22.8 | T.P161TA | 50 | |
| PG21 | 7 | 11 | 30 | 28.3 | 28.3-28.6 | T.P211TA | 25 | |
| PG29 | 8 | 12 | 39 | 37 | 37-37.3 | T.P291TA | 20 | |
| PG36 | 9 | 15 | 50 | 47 | 47-47.3 | T.P361TA | 10 | |
| PG42 | 10 | 16 | 57 | 54 | 54-54.3 | T.P421TA | 10 | |
| PG48 | 10 | 16 | 64 | 59.3 | 59.3-59.6 | T.P481TA | 10 |
