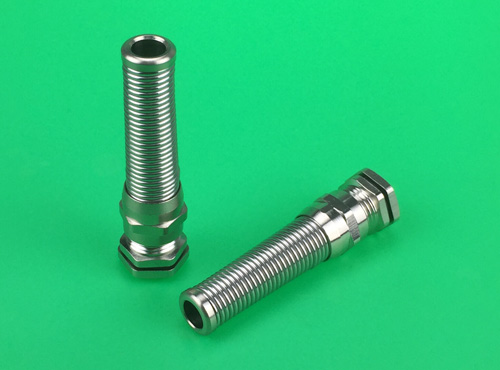

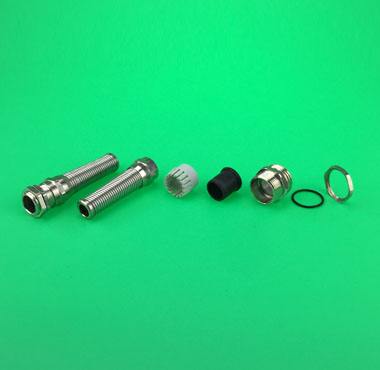

Name: metal prevent bend connector NPT series
Material: Nickel plated brass
Prevent bend spring: stainless steel 1.4310/ASTM301/SUS301
Clamping Jaw: Nylon,Flame Rating is V-2,According to UL94
Seal: NBR
Thread Type: NPT according to ANSI/ASME B 1.20.1
Test Standard: EN50262/EN62444
Protection Grade: IP68(with sealing )
Environment Temperature: -40℃ to +100℃
Note: other seal material please inquire.

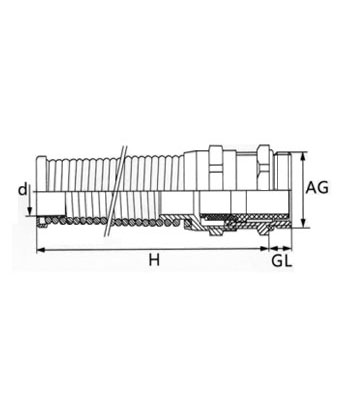

系列 规格 电缆范围 螺纹长度 本体高度 扳手直径 螺纹外径 开孔尺寸 订货号  包装 Packing
Series Thread GL H AG Panel Mounting Hole Order NO. 只/包
    mm mm mm mm mm mm   Pcs/Bag
金属防折弯接头NPT系列
metal prevent bend connector NPT series
NPT1/4 3-6.5 8 53 14/15 13.7 13.7-14 T.N140806F 50
NPT1/4 2-5 8 53 14/15 13.7 13.7-14 T.N140805F 50
NPT1/4 4-8 8 66 17 13.7 13.7-14 T.N140808F 50
NPT1/4 2-6 8 66 17 13.7 13.7-14 T.N140807F 50
NPT3/8 4-8 15 66 17/18 17 17-17.3 T.N381508F 20
NPT3/8 2-6 15 66 17/18 17 17-17.3 T.N381506F 20
NPT3/8 5-10 15 77 20 17 17-17.3 T.N381510F 20
NPT3/8 3-7 15 77 20 17 17-17.3 T.N381507F 20
NPT1/2 6-12 13 88 22 21.2 21.2-21.5 T.N121312F 50
NPT1/2 5-9 13 88 22 21.2 21.2-21.5 T.N121309F 20
NPT1/2 10-14 13 98 24 21.2 21.2-21.5 T.N121314F 20
NPT1/2 7-12 13 98 24 21.2 21.2-21.5 T.N121313F 20
NPT3/4 13-18 15 111 30 26.6 26.6-26.9 T.N341518F 10
NPT3/4 9-16 15 111 30 26.6 26.6-26.9 T.N341516F 10
