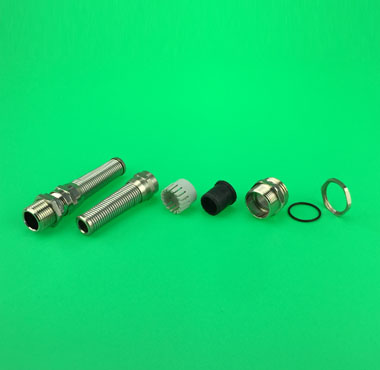

| Name: | metal prevent bend connector M Lengthen series |
| Material: | Nickel plated brass |
| Prevent bend spring: | stainless steel 1.4310/ASTM301/SUS301 |
| Clamping Jaw: | Nylon,Flame Rating is V-2,According to UL94 |
| Seal: | NBR |
| Thread Type: | M according to EN 60423 |
| Test Standard: | EN50262/EN62444 |
| Protection Grade: | IP68(O-ring and the wire/cable under the condition of clamping range ) |
| Environment Temperature: | -40°C to +100°C |
| Note: | other seal material please inquire. |

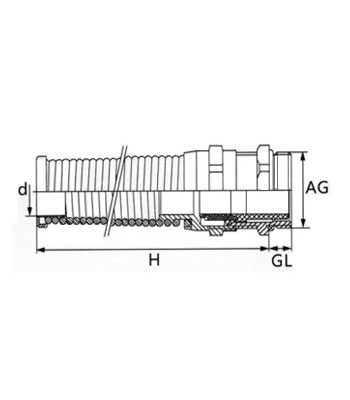

| 系列 | 规格 | 电缆范围 | 螺纹长度 | 本体高度 | 扳手直径 | 螺纹外径 | 开孔尺寸 | 订货号 | 包装 Packing |
| Series | Thread |
|
GL | H |
|
AG | Panel Mounting Hole | Order NO. | 只/包 |
| mm | mm | mm | mm | mm | mm | Pcs/Bag | |||
|
金属防折弯接头M加长系列 metal prevent bend connector M Lengthen series |
M12x1.5 | 3-6.5 | 10 | 53 | 14 | 12 | 12-12.3 | T.M121006F | 50 |
| M12x1.5 | 2-5 | 10 | 53 | 14 | 12 | 12-12.3 | T.M121005F | 50 | |
| M12x1.5 | 4-8 | 10 | 66 | 17 | 12 | 12-12.3 | T.M121008F | 50 | |
| M12x1.5 | 2-6 | 10 | 66 | 17 | 12 | 12-12.3 | T.M121007F | 50 | |
| M14x1.5 | 4-8 | 10 | 66 | 17 | 14 | 14-14.3 | T.M141008F | 50 | |
| M14x1.5 | 2-6 | 10 | 66 | 17 | 14 | 14-14.3 | T.M141006F | 50 | |
| M16x1.5 | 4-8 | 10 | 66 | 17 | 16 | 16-16.3 | T.M161008F | 50 | |
| M16x1.5 | 2-6 | 10 | 66 | 17 | 16 | 16-16.3 | T.M161006F | 50 | |
| M16x1.5 | 5-10 | 10 | 77 | 20 | 16 | 16-16.3 | T.M161010F | 20 | |
| M16x1.5 | 3-7 | 10 | 77 | 20 | 16 | 16-16.3 | T.M161007F | 20 | |
| M18x1.5 | 5-10 | 10 | 77 | 20 | 18 | 18-18.3 | T.M181010F | 20 | |
| M18x1.5 | 3-7 | 10 | 77 | 20 | 18 | 18-18.3 | T.M181007F | 20 | |
| M20x1.5 | 6-12 | 10 | 88 | 22 | 20 | 20-20.3 | T.M201012F | 20 | |
| M20x1.5 | 5-9 | 10 | 88 | 22 | 20 | 20-20.3 | T.M201009F | 20 | |
| M20x1.5 | 10-14 | 10 | 98 | 24 | 20 | 20-20.3 | T.M201014F | 20 | |
| M20x1.5 | 7-12 | 10 | 98 | 24 | 20 | 20-20.3 | T.M201013F | 20 | |
| M22x1.5 | 10-14 | 10 | 98 | 24 | 22 | 22-22.3 | T.M221014F | 20 | |
| M22x1.5 | 7-12 | 10 | 98 | 24 | 22 | 22-22.3 | T.M221012F | 20 | |
| M24x1.5 | 10-14 | 10 | 98 | 24/27 | 24 | 24-24.3 | T.M241014F | 20 | |
| M24x1.5 | 7-12 | 10 | 98 | 24/27 | 24 | 24-24.3 | T.M241012F | 20 | |
| M25x1.5 | 13-18 | 12 | 111 | 30 | 25 | 25-25.3 | T.M251218F | 10 | |
| M25x1.5 | 9-16 | 12 | 111 | 30 | 25 | 25-25.3 | T.M251216F | 10 | |
| M27x1.5 | 13-18 | 12 | 111 | 30 | 27 | 27-27.3 | T.M271218F | 10 | |
| M27x1.5 | 9-16 | 12 | 111 | 30 | 27 | 27-27.3 | T.M271216F | 10 | |
| M28x1.5 | 13-18 | 12 | 111 | 30 | 28 | 28-28.3 | T.M281218F | 10 | |
| M28x1.5 | 9-16 | 12 | 111 | 30 | 28 | 28-28.3 | T.M281216F | 10 | |
| M30x1.5 | 13-18 | 12 | 111 | 30/32 | 30 | 30-30.3 | T.M301218F | 10 | |
| M30x1.5 | 9-16 | 12 | 111 | 30/32 | 30 | 30-30.3 | T.M301216F | 10 |
