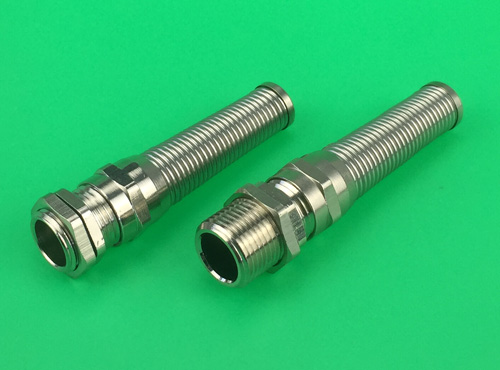

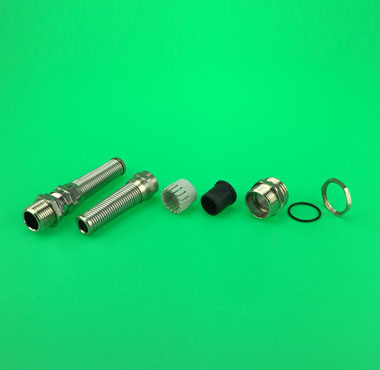

| Name: | metal prevent bend connector PG Lengthen series |
| Material: | Nickel plated brass |
| Prevent bend spring: | stainless steel 1.4310/ASTM301/SUS301 |
| Clamping Jaw: | Nylon,Flame Rating is V-2,According to UL94 |
| Seal: | NBR |
| Thread Type: | PG according to DIN 40430 |
| Test Standard: | EN50262/EN62444 |
| Protection Grade: | IP68(with sealing ) |
| Environment Temperature: | -40℃ to +100℃ |
| Note: | other seal material please inquire. |

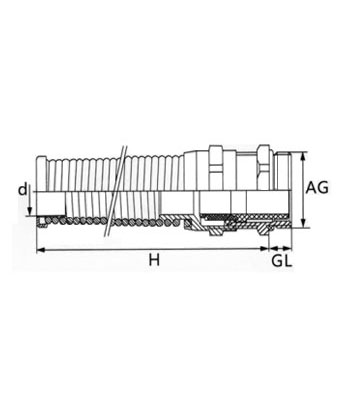

| 系列 | 规格 | 电缆范围 | 螺纹长度 | 本体高度 | 扳手直径 | 螺纹外径 | 开孔尺寸 | 订货号 | 包装 Packing |
| Series | Thread |
|
GL | H |
|
AG | Panel Mounting Hole | Order NO. | 只/包 |
| mm | mm | mm | mm | mm | mm | Pcs/Bag | |||
|
金属防折弯接头PG加长系列 metal prevent bend connector PG Lengthen series |
PG7 | 3-6.5 | 10 | 53 | 14 | 12.5 | 12.5-12.8 | T.P071006F | 50 |
| PG7 | 2-5 | 10 | 53 | 14 | 12.5 | 12.5-12.8 | T.P071005F | 50 | |
| PG9 | 4-8 | 10 | 66 | 17 | 15.2 | 15.2-15.5 | T.P091008F | 50 | |
| PG9 | 2-6 | 10 | 66 | 17 | 15.2 | 15.2-15.5 | T.P091006F | 50 | |
| PG11 | 5-10 | 10 | 77 | 20 | 18.6 | 18.6-18.9 | T.P111010F | 20 | |
| PG11 | 3-7 | 10 | 77 | 20 | 18.6 | 18.6-18.9 | T.P111007F | 20 | |
| PG13.5 | 6-12 | 10 | 88 | 22 | 20.4 | 20.4-20.7 | T.P131012F | 20 | |
| PG13.5 | 5-9 | 10 | 88 | 22 | 20.4 | 20.4-20.7 | T.P131009F | 20 | |
| PG16 | 10-14 | 10 | 98 | 24 | 22.5 | 22.5-22.8 | T.P161014F | 20 | |
| PG16 | 7-12 | 10 | 98 | 24 | 22.5 | 22.5-22.8 | T.P161012F | 20 | |
| PG21 | 13-18 | 12 | 111 | 30 | 28.3 | 28.3-28.6 | T.P211218F | 10 | |
| PG21 | 9-16 | 12 | 111 | 30 | 28.3 | 28.3-28.6 | T.P211216F | 10 |
