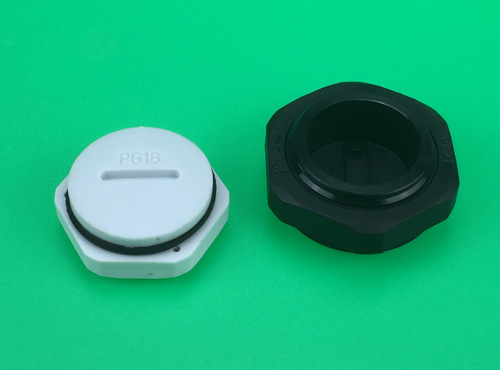

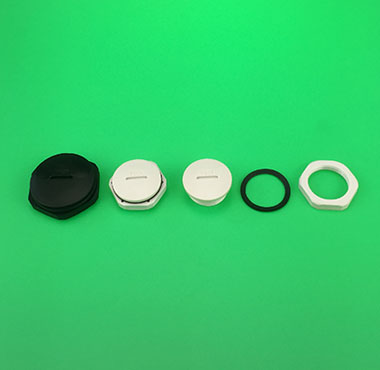

Name: plastic round screw plug PG series
Material: Nylon PA6
Seal: NBR
Protection Grade: IP54
Environment Temperature: from -20℃ to 80℃
Product Color: Grey RAL7035;Black RAL9005,other color please inquire.

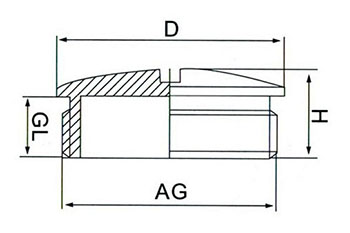

系列 规格 螺纹长度 本体高度 螺纹外径 平面直径 开孔尺寸 order NO. 包装 Packing
Series Thread GL H AG D Panel Mounting Hole 灰色 黑色 只/包
　 　 mm mm mm mm mm Grey Black Pcs/Bag
塑料圆形闷盖PG系列
plastic round screw plug PG series 		PG7 8 12.5 12.5 15 12.5-12.8 P0710PA P0711PA 100
PG9 8 13 15.2 19 15.2-15.5 P0910PA P0911PA 100
PG11 9 13 18.6 22 18.6-18.9 P1110PA P1111PA 100
PG13.5 9 13 20.4 25 20.4-20.7 P1310PA P1311PA 100
PG16 10 15 22.5 27 22.5-22.8 P1610PA P1611PA 100
PG21 10 15.5 28.3 33 28.3-28.6 P2110PA P2111PA 100
PG29 11 16 37 43 37-37.3 P2910PA P2911PA 50
PG36 13 18 47 55 47-47.3 P3610PA P3611PA 20
PG42 13 18.5 54 62 54-54.3 P4210PA P4211PA 20
PG48 14 19.5 59.3 68 59.3-59.6 P4810PA P4811PA 20
