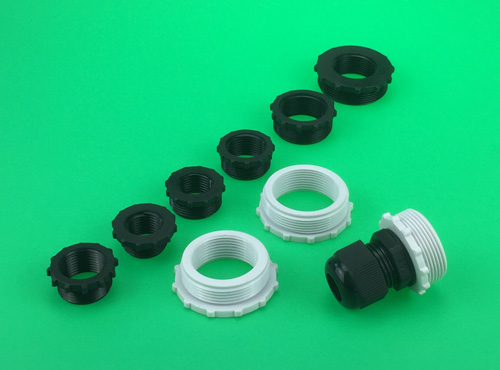

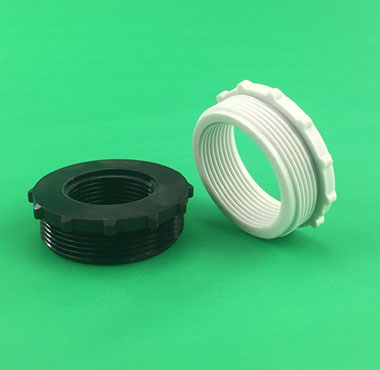

Name: plastic reduce connector PG to PG series
Material: Nylon PA6
Environment Temperature: from -20℃ to 80℃
Product Color: Grey RAL7035;Black RAL9005,other color please inquire.
系列 规格 螺纹内径 螺纹长度 本体高度 螺纹外径 平面直径 开孔尺寸 订货号 Order NO. 包装 Packing

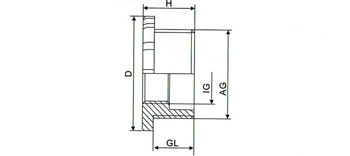

Series Thread IG GL H AG D Panel Mounting Hole 灰色 黑色 只/包
　 　 mm mm mm mm mm mm Grey Black Pcs/Bag
塑料缩径件PG转PG系列
plastic reduce connector PG to PG series 		PG13.5-PG9 PG9 8 12 20.4 27 20.4-20.7 P13P090 P13P091 100
PG16-PG9 PG9 10 13 22.5 29 22.5-22.8 P16P090 P16P091 100
PG16-PG11 PG11 10 13 22.5 29 22.5-22.8 P16P110 P16P111 100
PG21-PG13.5 PG13.5 11 13.5 28.3 36 28.3-28.6 P21P130 P21P131 100
PG21-PG16 PG16 11 13.5 28.3 36 28.3-28.6 P21P160 P21P161 100
PG29-PG21 PG21 11 13.5 37 46 37-37.3 P29P210 P29P211 50
PG36-PG29 PG29 11 15 47 58 47-47.3 P36P290 P36P291 20
