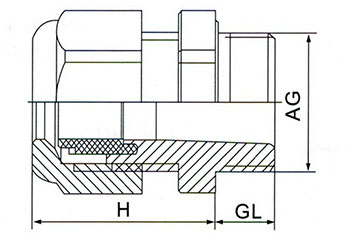

系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing
Series	Thread		GL	H		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag
塑料电缆接头PG系列 plastic cable gland PG series	PG7	3-6.5	8	22	16	12.5	12.5-12.8	P0708060	P0708061	100
	PG7	2-5	8	22	16	12.5	12.5-12.8	P0708050	P0708051	100
	PG9	4-8	8	26	19	15.2	15.2-15.5	P0908080	P0908081	100
	PG9	2-6	8	26	19	15.2	15.2-15.5	P0908060	P0908061	100
	PG11	5-10	8	27	22	18.6	18.6-18.9	P1108100	P1108101	100
	PG11	3-7	8	27	22	18.6	18.6-18.9	P1108070	P1108071	100
	PG13.5	6-12	9	28	24	20.4	20.4-20.7	P1309120	P1309121	100
	PG13.5	5-9	9	28	24	20.4	20.4-20.7	P1309090	P1309091	100
	PG16	10-14	10	30	27	22.5	22.5-22.8	P1610140	P1610141	100
	PG16	7-12	10	30	27	22.5	22.5-22.8	P1610120	P1610121	100
	PG19	12-15	10	30	27/28	24	24-24.3	MP1910150	MP1910151	100
	PG19	10-12	10	30	27/28	24	24-24.3	MP1910120	MP1910121	100
	PG21	13-18	10	35	33	28.3	28.3-28.6	P2110180	P2110181	100
	PG21	9-16	10	35	33	28.3	28.3-28.6	P2110160	P2110161	100
	PG25	16-21	11	34	35/36	30	30-30.3	MP2511210	MP2511211	50
	PG25	13-18	11	34	35/36	30	30-30.3	MP2511180	MP2511181	50
	PG29	18-25	12	40	41/42	37	37-37.3	P2912250	P2912251	50
	PG29	13-20	12	40	41/42	37	37-37.3	P2912200	P2912201	50
	PG36	22-32	14	48	52/53	47	47-47.3	P3614320	P3614321	20
	PG36	20-26	14	48	52/53	47	47-47.3	P3614260	P3614261	20
	PG42	32-38	14	49	60/61	54	54-54.3	P4214380	P4214381	20
	PG42	25-31	14	49	60/61	54	54-54.3	P4214310	P4214311	20
	PG48	37-44	14	50	64/65	59.3	59.3-59.6	P4814440	P4814441	20
	PG48	29-35	14	50	64/65	59.3	59.3-59.6	P4814350	P4814351	20
	PG63	42-50	27	60	72	70	70-70.3	MP6327500	MP6327501	4

Inquiry

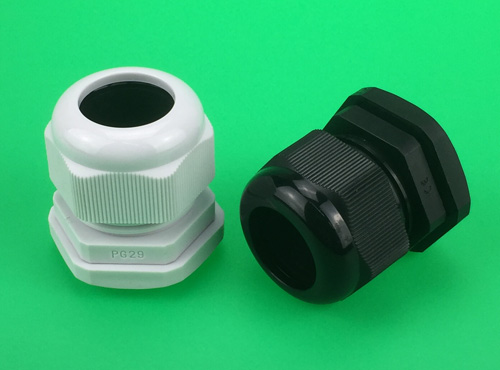

Name:	plastic cable gland PG series
Material:	Nylon PA6
Seal:	NBR
Protection Grade:	IP68(with sealing）
Environment Temperature:	from -40℃ to 100℃(120℃ for short term)
Product Color:	Grey RAL7035;Black RAL9005,other color please inquire.
