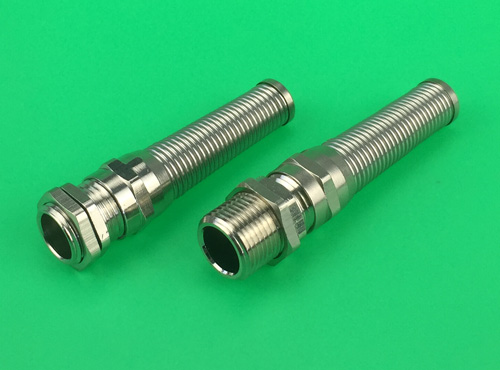

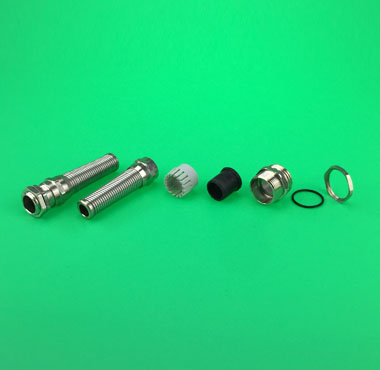

Name: metal prevent bend connector M series
Material: Nickel plated brass
Prevent bend spring: stainless steel 1.4310/ASTM301/SUS301
Clamping Jaw: Nylon,Flame Rating is V-2,According to UL94
Seal: NBR
Thread Type: M according to EN 60423
Test Standard: EN50262/EN62444
Protection Grade: IP68(O-ring and the wire/cable under the condition of clamping range )
Environment Temperature: -40℃ to +100℃
Note: other seal material please inquire.
系列 规格 电缆范围 螺纹长度 本体高度 扳手直径 螺纹外径 开孔尺寸 订货号  数量/袋

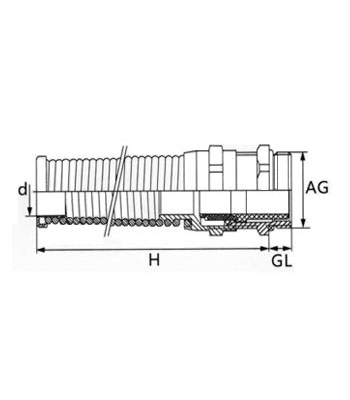

Series Thread   GL H   AG Panel Mounting Hole order NO. Qty/bag
    mm mm mm mm mm mm
金属防折弯接头M系列
metal prevent bend connector M series
M12x1.5 3-6.5 5 53 14 12 12-12.3 T.M120506F 50
M12x1.5 2-5 5 53 14 12 12-12.3 T.M120505F 50
M12x1.5 4-8 6 66 17 12 12-12.3 T.M120608F 50
M12x1.5 2-6 6 66 17 12 12-12.3 T.M120607F 50
M14x1.5 4-8 6 66 17 14 14-14.3 T.M140608F 50
M14x1.5 2-6 6 66 17 14 14-14.3 T.M140606F 50
M16x1.5 4-8 6 66 17 16 16-16.3 T.M160608F 50
M16x1.5 2-6 6 66 17 16 16-16.3 T.M160606F 50
M16x1.5 5-10 6 77 20 16 16-16.3 T.M160610F 20
M16x1.5 3-7 6 77 20 16 16-16.3 T.M160607F 20
M18x1.5 5-10 6 77 20 18 18-18.3 T.M180610F 20
M18x1.5 3-7 6 77 20 18 18-18.3 T.M180607F 20
M20x1.5 6-12 6.5 88 22 20 20-20.3 T.M200712F 20
M20x1.5 5-9 6.5 88 22 20 20-20.3 T.M200709F 20
M20x1.5 10-14 6.5 98 24 20 20-20.3 T.M200714F 20
M20x1.5 7-12 6.5 98 24 20 20-20.3 T.M200713F 20
M22x1.5 10-14 6.5 98 24 22 22-22.3 T.M220714F 20
M22x1.5 7-12 6.5 98 24 22 22-22.3 T.M220712F 20
M24x1.5 12-14 6.5 98 24/27 24 24-24.3 T.M240714F 10
M24x1.5 7-12 6.5 98 24/27 24 24-24.3 T.M240712F 10
M25x1.5 13-18 7 111 30 25 25-25.3 T.M250718F 10
M25x1.5 9-16 7 111 30 25 25-25.3 T.M250716F 10
M27x1.5 13-18 7 111 30 27 27-27.3 T.M270718F 10
M27x1.5 9-16 7 111 30 27 27-27.3 T.M270716F 10
M28x1.5 13-18 7 111 30 28 28-28.3 T.M280718F 10
M28x1.5 9-16 7 111 30 28 28-28.3 T.M280716F 10
M30x1.5 13-18 8 111 30/32 30 30-30.3 T.M300818F 10
M30x1.5 9-16 8 111 30/32 30 30-30.3 T.M300816F 10
