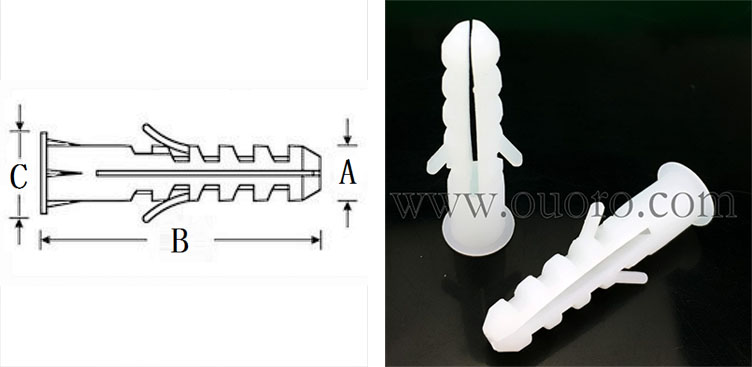

型号 A B C 钻孔直径(mm) 配用螺丝直径(mm) 配用螺丝长度(mm) 最小钻孔深度(mm)
Model (mm) (mm) (mm) suitable hole size(mm) suitable screw diameter(mm) suitable screw length(mm) minimum drilling depth(mm)
Φ5 4 25 5 5(配5冲击钻) 4.0-4.5 30 38
Φ6 5 27 6 6(配6冲击钻) 4.0-5.0 30 40
Φ7 6 30 7 7(配7冲击钻) 4.0-5.5 30 45
Φ8 7 40 8 8(配8冲击钻) 4.5-6.0 40 50
Φ10 9 50 10 10(配10冲击钻) 6.0-8.0 50 65
