系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing
Series	Thread		GL	H		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag
塑料防折弯接头M加长系列 plastic prevent bend connector M Lengthen series	M12x1.5	3-6.5	15	55	15/16	12	12-12.3	M1215060F	M1215061F	100
	M12x1.5	2-5	15	55	15/16	12	12-12.3	M1215050F	M1215051F	100
	M16x1.5	4-8	15	70	19	16	16-16.3	M1615080F	M1615081F	100
	M16x1.5	2-6	15	70	19	16	16-16.3	M1615060F	M1615061F	100
	M16x1.5	5-10	15	78	22	16	16-16.3	M1615100F	M1615101F	50
	M16x1.5	3-7	15	78	22	16	16-16.3	M1615070F	M1615071F	50
	M18x1.5	5-10	15	78	22	18	18-18.3	M1815100F	M1815101F	50
	M18x1.5	3-7	15	78	22	18	18-18.3	M1815070F	M1815071F	50
	M20x1.5	6-12	15	90	24	20	20-20.3	M2015120F	M2015121F	50
	M20x1.5	5-9	15	90	24	20	20-20.3	M2015090F	M2015091F	50
	M20x1.5	10-14	15	100	27	20	20-20.3	M2015140F	M2015141F	20
	M20x1.5	7-12	15	100	27	20	20-20.3	M2015130F	M2015131F	20
	M22x1.5	10-14	15	100	27	22	22-22.3	M2215140F	M2215141F	20
	M22x1.5	7-12	15	100	27	22	22-22.3	M2215120F	M2215121F	20
	M25x1.5	13-18	15	112	33	25	25-25.3	M2515180F	M2515181F	20
	M25x1.5	9-16	15	112	33	25	25-25.3	M2515160F	M2515161F	20
	M27x1.5	13-18	15	112	33	27	27-27.3	M2715180F	M2715181F	20
	M27x1.5	9-16	15	112	33	27	27-27.3	M2715160F	M2715161F	20

Inquiry

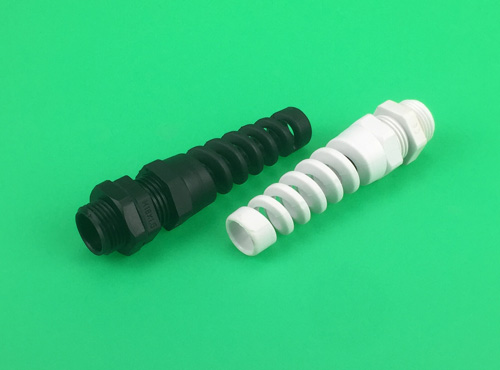

Name:	plastic prevent bend connector M Lengthen series
Material:	Nylon PA6
Seal:	NBR
Protection Grade:	IP68(with sealing）
Environment Temperature:	from -40℃ to 100℃(120℃ for short term)
Product Color:	Grey RAL7035;Black RAL9005,other color please inquire.
