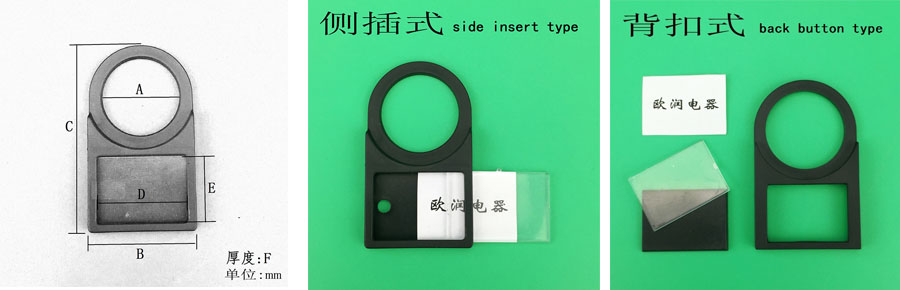

产品名称 型号 A B C D E F
name Model (mm) (mm) (mm) (mm) (mm) (mm)

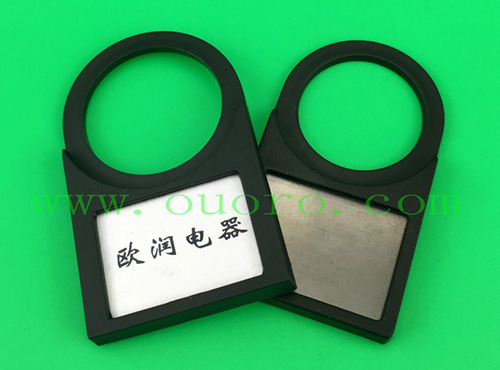

按扭标识框 button marker plate OR-Φ16背扣(back button type)
16.3 20 31.4 15 7.5 4.4
OR-Φ22背扣(back button type)  22.5 29.6 45 25.4 11.4 4.8
OR-Φ22侧插(side insert type)  22.5 30 45.3 25 11.2 4.5
OR-Φ25背扣(back button type)  25.5 32.5 46.9 25.3 11.3 5
OR-Φ25侧插(side insert type) 25.5 31.6 46.7 25.2 11.2 5
OR-Φ30背扣(back button type)  30.5 37.5 52 33.3 11.3 5
