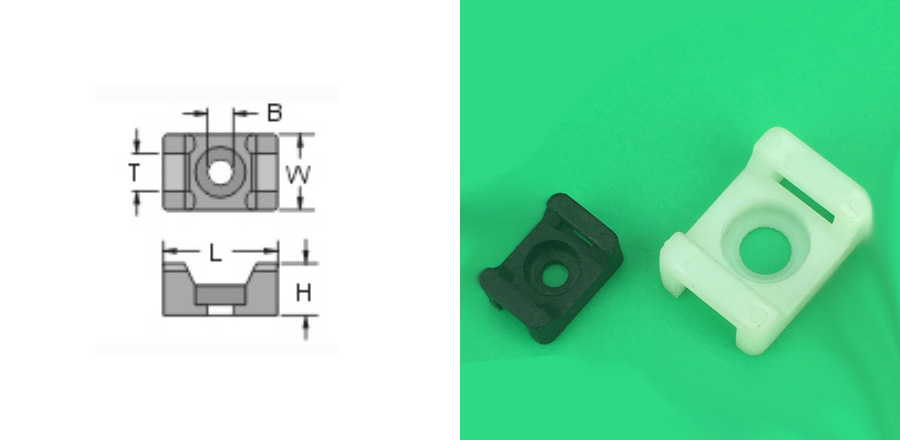

| 型号 | H | L | W | T扎带(mm) | B固定孔(mm) |
| Model | (mm) | (mm) | (mm) | T cable tie(mm) | B fix hole(mm) |
| HC-0M(Φ4) | 5 | 19 | 9.5 | 5×2 | 4.5 |
| HC-0M(Φ5)也有，we also have HC-0M(Φ5) | |||||

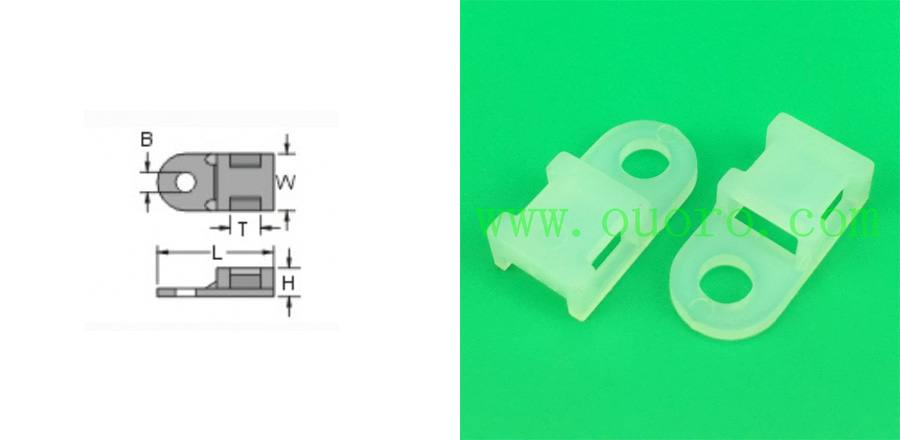

| 型号 | H | L | W(mm) | T扎带(mm) | B固定孔(mm) |
| Model | (mm) | (mm) | (mm) | T cable tie(mm) | B fix hole(mm) |
| HC-1S | 5.8 | 12.8 | 7 | 4×2 | 3.3 |
| HC-1(Φ3) | 7 | 14.6 | 10 | 5×2 | 3.5 |
| HC-2S(Φ5) | 9 | 22.8 | 16 | 9×3 | 5.3 |
| HC-2L(Φ6) | 9 | 22.5 | 15.8 | 9×3 | 6.3 |

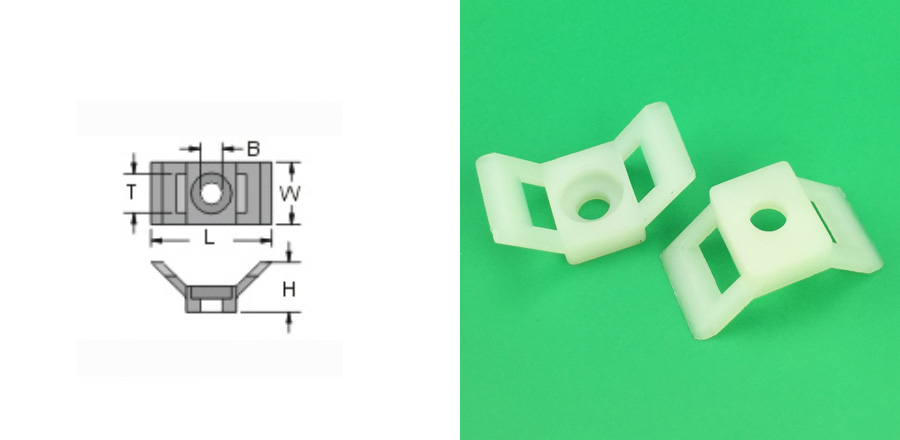

| 型号 | H | L | W | T扎带(mm) | B固定孔(mm) |
| Model | (mm) | (mm) | (mm) | T cable tie(mm) | B fix hole(mm) |
| HC-4 | 11.6 | 28.6 | 15 | 9.5×4 | 5.4 |
| 型号 | A | B | T | 适用孔径(mm) |
| Model | (mm) | (mm) | (mm) |
suitable hole size(mm) |
| CH-6 | 32 | 6.3 | 9.8×3 | 6 |
| CH-8H | 36 | 5.9 | 9.8×3 | 9 |
