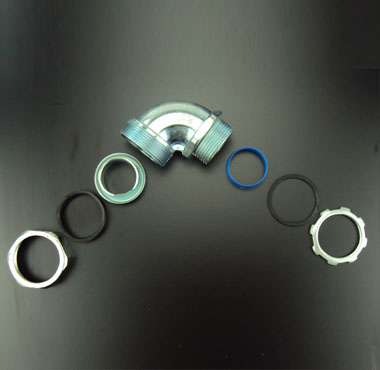

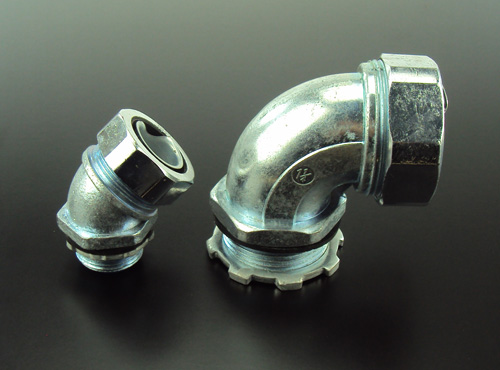

| Name: | Zinc alloy 45º 90º hose joint series |
| Material: | use zinc alloy, the surface is galvanized |
| Protection Grade: | IP65 |
| 金属软管规格 Metal hose size | 45º hose joint | 90º hose joint | 包装 Packing 只/箱(Pcs/carton) | |||||||||

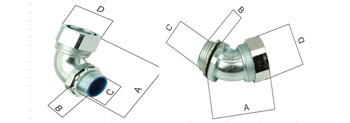

| 软管尺寸(hose size) | 英制 Inch system | 公制 Metric system | A(mm) | B(mm) | C(mm) | D(mm) | A(mm) | B(mm) | C(mm) | D(mm) | 45ºhose joint | 90ºhose joint |
| Φ13mm | G3/8 | M20X1.5 | 43 | 13.5 | 14 | 28 | 47 | 11.5 | 14.5 | 28 | 350 | 300 |
| Φ15/16mm | G1/2 | M20X1.75 | 48 | 13 | 15 | 32 | 53 | 12 | 15 | 32 | 300 | 250 |
| Φ20mm | G3/4 | M27X2 | 58 | 14.5 | 19.5 | 37 | 63 | 14 | 19.5 | 37 | 200 | 150 |
| Φ25mm | G1 | M33X2 | 69 | 16 | 25 | 44.5 | 76 | 15 | 25 | 44.5 | 100 | 100 |
| Φ32mm | G1-1/4 | M42X2 | 74 | 17 | 33.5 | 56 | 82 | 17 | 33.5 | 56 | 60 | 50 |
| Φ38mm | G1-1/2 | M48X2 | 85 | 17.5 | 39 | 62 | 98 | 17 | 39 | 62 | 50 | 40 |
| Φ51mm | G2 | M60X2 | 99 | 20 | 49 | 76.5 | 113 | 21 | 49 | 76.5 | 30 | 25 |
| Φ64mm | G2-1/2 | M76X2 | 110 | 25 | 62.5 | 95 | 134 | 23 | 62.5 | 95 | 15 | 15 |
| Φ75mm | G3 | M88X2 | 130 | 26 | 75 | 109 | 150 | 27 | 75 | 109 | 10 | 10 |
| Φ100mm | G4 | M114X2 | 220 | 30 | 97 | 141 | 199 | 28 | 97 | 141 | 5 | 5 |
