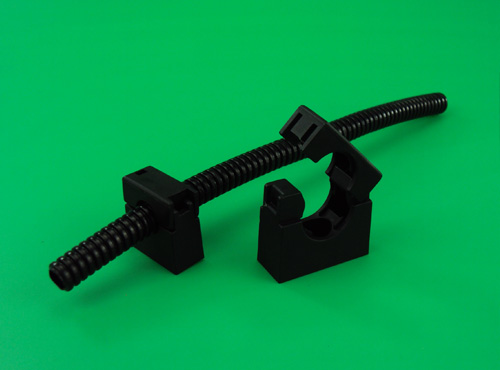

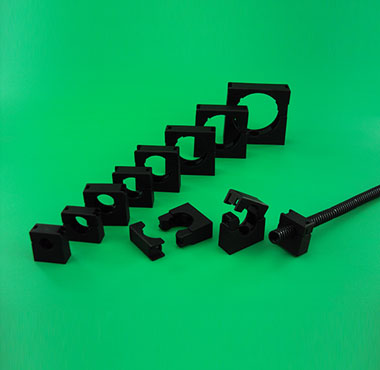

| Name: | plastic bracket series |
| Type: | AD10 to AD54.5 |
| Material: | Nylon PA6 |
| Product Color: | Black,other color please inquire. |
| Work temperature: | from -40℃ to 110℃ |

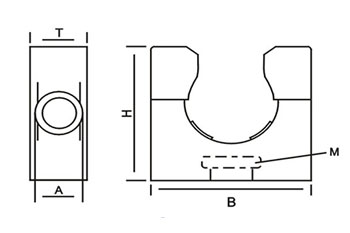

| 型号 | 适配软管 | B(ｍｍ) | H(ｍｍ) | T(ｍｍ) | M(ｍｍ) | A(ｍｍ) | 包装 Packing |
| Size | Matching hose | Pcs/Bag | |||||
| AD10 | AD10 | 25 | 26 | 12.5 | 4 | 6.5 | 100 |
| AD13 | AD13 | 30 | 26 | 12.5 | 4 | 6.5 | 100 |
| AD15.8 | AD15.8 | 30 | 26 | 12.5 | 5 | 6.5 | 100 |
| AD18.5 | AD18.5 | 35 | 33 | 15 | 6 | 6.5 | 100 |
| AD21.2 | AD21.2 | 35 | 34 | 15 | 6 | 6.5 | 100 |
| AD25 | AD25 | 42 | 38 | 16 | 6 | 11.5 | 100 |
| AD28.5 | AD28.5 | 42 | 42 | 16 | 6 | 11.5 | 50 |
| AD34.5 | AD34.5 | 51 | 49 | 16 | 6 | 11.5 | 50 |
| AD42.5 | AD42.5 | 58 | 57 | 18 | 6 | 11.5 | 50 |
| AD54.5 | AD54.5 | 73 | 70 | 20 | 7 | 12 | 50 |
