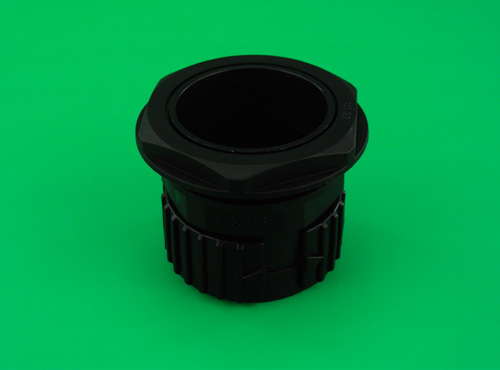

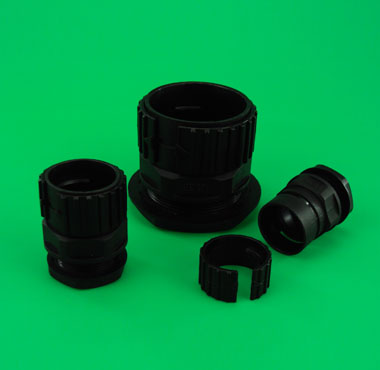

Name: plastic quick joint series
Thread type: ： PG/M/G
Material: Nylon PA6 with outer clamp
Product Color: Black,other color please inquire.
Work temperature: from -40℃ to 110℃

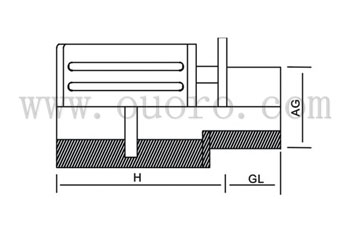

型号 适配软管 螺纹 AG外径(mm） AG内径(mm） GL(mm） H 包装 Packing
Size Matching hose Thread AG external diameter (mm） AG internal diameter (mm） 　 　  Pcs/Bag
AD10-PG7 AD10 PG7 12.3 7.5 10 19 100
AD10-M12×1.5 M12×1.5 12 7.5 10 19 100
AD10-M16×1.5 M16×1.5 16 7.5 10 19.5 100
AD13-PG9 AD13 PG9 15 10 10 19 100
AD13-M16×1.5 M16×1.5 16 10 10 19.5 100
AD15.8-PG11 AD15.8 PG11 18.4 12.5 12.5 25 100
AD15.8-M16×1.5 M16×1.5 16 10.5 10 23.5 100
AD15.8-M18×1.5 M18×1.5 18 12.5 10 23.5 100
AD18.5-PG13.5 AD18.5 PG13.5 20.2 14.3 13 27 100
AD18.5-M20×1.5 M20×1.5 20 14.3 12.5 25 50
AD21.2-PG16 AD21.2 PG16 22.3 17 13.5 32 50
AD21.2-M20×1.5 M20×1.5 20 17 13 27 50
AD21.2-M24×1.5 M24×1.5 24 17 13 27 50
AD25-M25×1.5 AD25 M25×1.5 25 19 13.5 30 50
AD25-G3/4 G3/4 26 19 13.5 30 50
AD28.5-PG21 AD28.5 PG21 28 22 14 35 50
AD28.5-M25×1.5 M25×1.5 25 20.5 20 32.5 50
AD28.5-M27×2.0 M27×2.0 27 22 14 32 50
AD34.5-PG29 AD34.5 PG29 36.7 29 14 35 20
AD34.5-M32×1.5 M32×1.5 32 26.5 20 35 20
AD34.5-M36×2.0 M36×2.0 36 30 14 35 20
AD34.5-G1 G1 33 26.5 20 35 20
AD42.5-PG36 AD42.5 PG36 46.7 36.5 14 38 10
AD42.5-M48×2.0 M48×2.0 48 36 14 38 10
AD54.5-PG48 AD54.5 PG48 59 50 16.5 39 10
AD54.5-M60×2.0 M60×2.0 60 50 16.5 39 10
