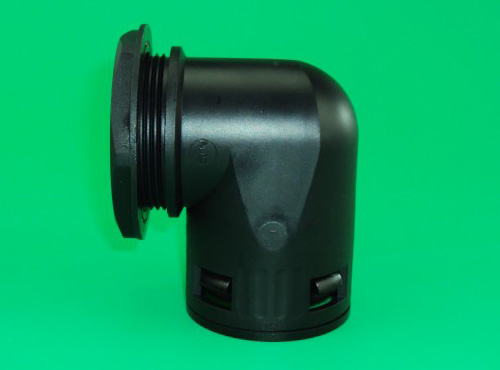

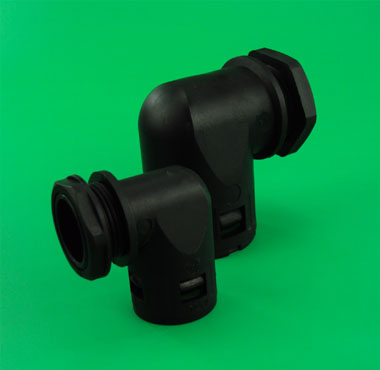

Name: plastic 90° joint series
Thread type: PG/M/G
Material: Nylon PA6
Product Color: Black,other color please inquire.
Work temperature: from -40℃ to 110℃

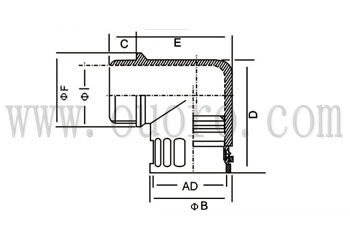

型号 适配软管 螺纹 螺纹外径(mm） I(mm） C(mm） E(mm） F(mm）
Size Matching hose Thread  external diameter (mm） 　 　 　 　
AD10-PG7 AD10 PG7 12.5 7 10 32 18
AD10-M12×1.5 M12×1.5 12 7 10 32 18
AD10-M16×1.5 M16×1.5 16 10 10 32 20
AD13-PG9 AD13 PG9 15.2 10 10 34 20
AD13-M12×1.5 M12×1.5 12 10 10 34.5 20
AD13-M16×1.5 M16×1.5 16 10 10 34.5 20
AD13-M18×1.5 M18×1.5 18 10 10 35 24
AD13-M20×1.5 M20×1.5 20 11 10 35 24
AD13-G3/8 G3/8 16.7 10 12 32 20
AD15.8-PG11 AD15.8 PG11 18.6 12 10 37.5 24.3
AD15.8-PG13.5 PG13.5 20.4 14 10 37.5 24
AD15.8-M16×1.5 M16×1.5 16 11 10 37.5 24
AD15.8-M18×1.5 M18×1.5 18 11 10 37.5 24
AD15.8-M20×1.5 M20×1.5 20 12 10 37.5 24
AD18.5-PG13.5 AD18.5 PG13.5 20.4 14 11 43.5 27
AD18.5-M20×1.5 M20×1.5 20 15 11.5 43.5 27
AD21.2-PG16 AD21.2 PG16 22.5 15 13 48 31
AD21.2-M20×1.5 M20×1.5 20 15 13 49 31
AD21.2-M24×1.5 M24×1.5 24 17 13 49 31
AD21.2-M25×1.5 M25×1.5 25 17 13 49 31
AD21.2-G1/2 G1/2 21 11 13 49 31
AD25-M25×1.5 AD25 M25×1.5 25 19.5 13 52 32
AD25-G1/2 G1/2 21 11 13 52 32
AD28.5-PG21 AD28.5 PG21 28.3 22 13 57 34
AD28.5-M25×1.5 M25×1.5 25 19.5 13 57 34
AD28.5-M27×2.0 M27×2.0 27 23 13 57 34
AD28.5-M30×2.0 M30×2.0 30 23 13 57 34
AD28.5-G3/4 G3/4 26.4 21 13.5 57 34
AD34.5-PG29 AD34.5 PG29 37 29 14 64 43
AD34.5-M32×1.5 M32×1.5 32 27 14.5 65 43
AD34.5-M36×2.0 M36×2.0 36 29 14.5 64 43
AD34.5-M40×1.5 M40×1.5 40 29 14.5 64 43
AD34.5-G1 G1 33 28 15 65 43
AD42.5-PG36 AD42.5 PG36 47 38 14 72 50
AD42.5-M40×1.5 M40×1.5 40 34 14.5 72 50
AD42.5-M48×2.0 M48×2.0 48 36 14.5 72 50
AD54.5-PG48 AD54.5 PG48 59.3 50 15.5 84 64
AD54.5-M50×1.5 M50×1.5 50 44 16 84 64
AD54.5-M60×1.5 M60×1.5 60 48 16 84 64
AD54.5-M63×1.5 M63×1.5 63 48 16 84 64
