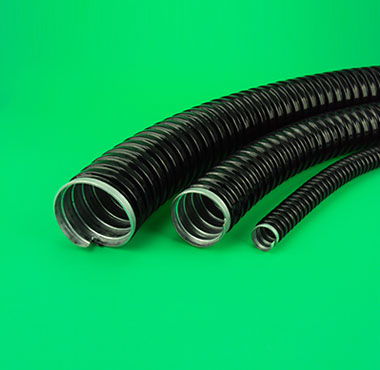

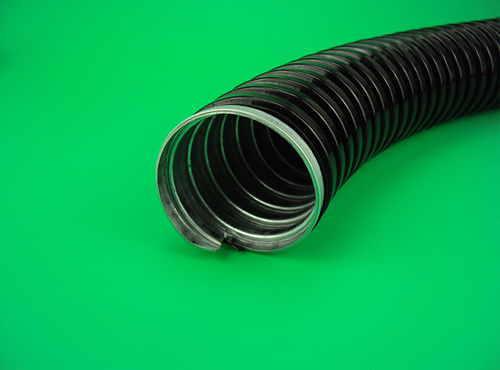

| Name: | Metal hose series |
| Material: | The inner layer is galvanized steel strip, The outer layer is PVC |
| Color: | Black, gray,other color please inquire |
| Temperature: | from -40℃ to 80℃(100℃ for short term) |
| Protection Grade: | IP68 |
| Characteristic： | waterproof, insulation, tensile property, flame retarding |
| 内径 | 外径 | 公制 | 钢带尺寸 | 包装(米/卷) | 重量（千克/卷） |
| internal diameter | external diameter | metric | steel strip size(mm) | packing(meter/roll) | weight(kgs/roll) |
| φ6 | φ9 | 1-1/16 | 6*20 | 200 | 12.5 |
| φ8 | φ11.5 | 1/4 | 6*20 | 100 | 7.9 |
| φ10 | φ14 | 5/16 | 7.1*20 | 100 | 10.2 |
| φ13 | φ16.5 | 3/8 | 7.1*20 | 100 | 13 |
| φ16 | φ20.5 | 1/2 | 8.6*22 | 100 | 16.5 |
| φ20 | φ24 | 3/4 | 8.6*22 | 50 | 9.8 |
| φ25 | φ28.5 | 1 | 9.5*25 | 50 | 14.3 |
| φ32 | φ38 | 1-1/4 | 12.7*25 | 50 | 19.4 |
| φ38 | φ44 | 1-1/2 | 15*30 | 50 | 25.3 |
| φ51 | φ60 | 2 | 17*35 | 20 | 17.6 |
